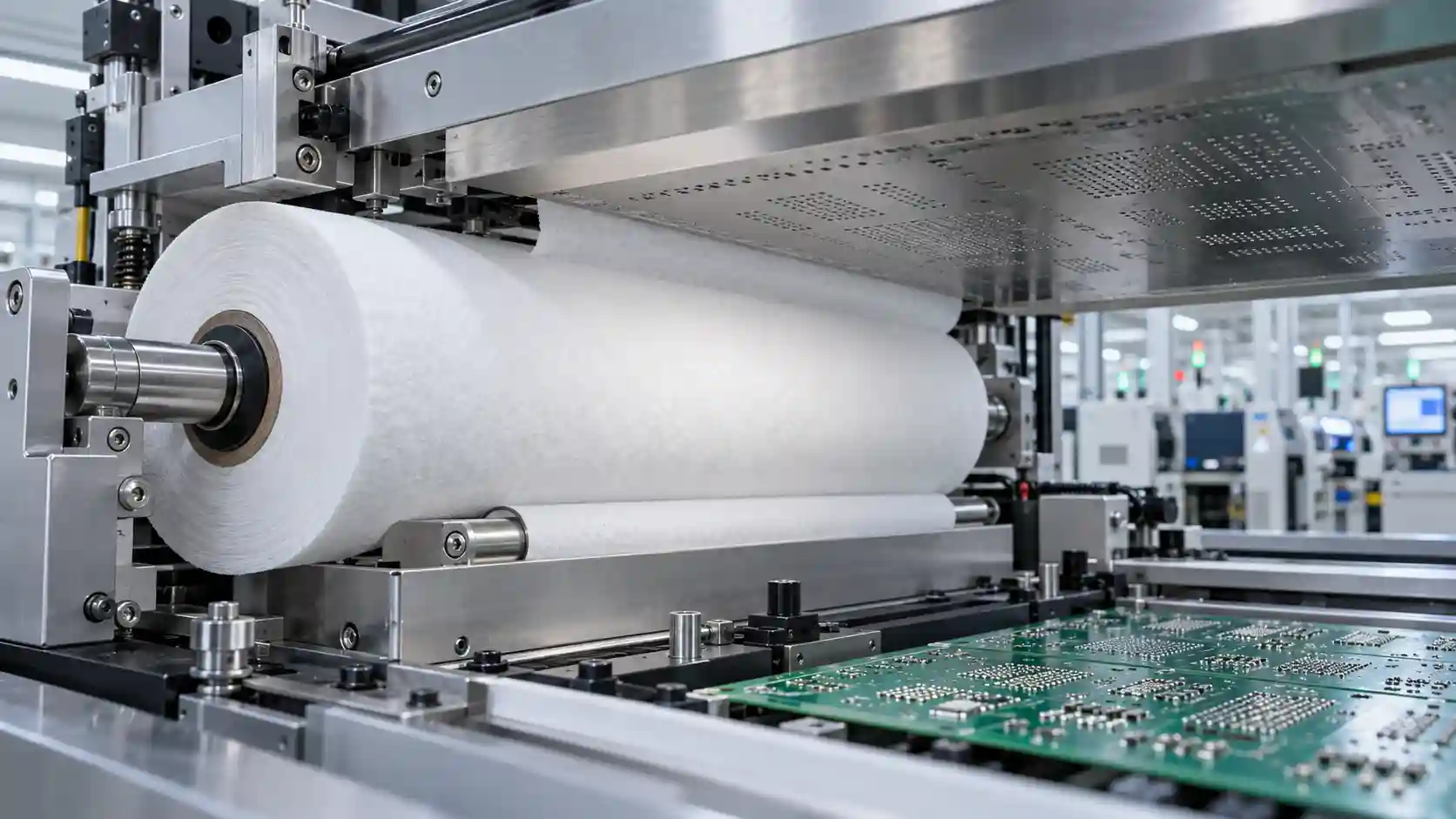

Stencil Cleaning Roll: A Reliable Solution for SMT Stencil Cleaning

A cleanly-looking stencil may not be clean. Even a thin layer of Solder Paste on the stencil can lead to apertures getting blurred, bridge forming and ruin print quality in SMT production. By the end of the shift, one poor print might be a rework queue.

That is one reason for not cleaning as an incident. A Stencil Cleaning Roll cleans the bottom of the stencil between prints, without halting the line. This blog discusses how it works, what to look for and how to select the ideal one for reliable SMT Stencil Cleaning.

What Is a Stencil Cleaning Roll and How Does It Work?

The Stencil Cleaning Roll is a "roll of wiping material" that fits into an automated stencil printer. Once a print is made, the printer presses the roll against the bottom of the stencil, and slides it across the surface. The material picks up excess paste that has been drawn in or forced around the apertures.

The fundamental flow is:

• When the printer finishes a print the board is removed.
• The cleaning system moves a new portion of the SMT Stencil Cleaning Roll.
• The stencil underside is wiped by the roll, depending on the printer setting, it is dry, wet or with vacuum assist.
• All used material is wound up on a take up core, ensuring each wipe is used on a fresh surface.

This exercise is most important for fine-pitch boards. Clean apertures produce paste evenly and that is the key to successful PCB Stencil Cleaning.

Key Features of a High-Quality Stencil Cleaning Wiper Roll

Not all rolls are created equally. It is important that a good stencil cleaning wiper roll lasts for hundreds of wipes, and not just the first few. The difference between a reliable roll and an average roll is as follows:

• Low-lint construction, where low lint means that no loose fibres get into the paste deposits. A true lint-free cleaning roll ensures print quality.
• Good absorption which absorbs the paste from the apertures rather than smearing it across the stencil.
• High tensile strength, to prevent tearing or snapping as the printer moves it.
• Wipes perform the same throughout the entire length of the uniform.
• Correct width and core size to ensure correct fit for cleaning mechanism in printer.

These are the qualities that you must consider when putting together long production run inventories of SMT Cleaning Consumables. The investment for a roll that tears mid-cycle or loses fibres is far more expensive than the cost of the lost production.

Benefits of Using Stencil Cleaning Rolls in SMT Production

The right roll provides your process some helpful assistance. If used properly, stencil cleaning rolls aid in the following:

• Improved print consistency as dried residues will not build up in the apertures.
• Low smearing and bridging phenomenon of solder paste printing, particularly on fine-pitch pads.
• Less cleaning time because the printer cleans automatically.
• Reduced rework after printing/reflow.
• Remove dirt from stencil surfaces over extended periods of use.

These are genuine improvements, but there are no guarantees when it comes to a consumable. Even with the best pastes, the correct squeegee pressure, and the best stencil design and machine setup, print quality can still suffer. The roll is one sure link in the chain. It makes it repeatable for SMT Stencil Cleaning, allowing your team to run boards and not firefight.

Industrial Use of Stencil Cleaning Rolls

Generally, the stencil will have to be cleaned routinely wherever solder paste is to be printed. Common settings include:

• PCB assembly lines that produce low volumes of high mix products.
• Electronics manufacturing sites for consumer and industrial electronics devices.
• High-reliability applications such as automotive electronics.
• Manufacturing LED lights, where there is only a little space left to make a mistake.
• A lot of customers, and frequent changeovers, at EMS facilities.
• Other SMT production environments such as prototyping and repair units.

All of them can be cleaned with the use of a PCB Stencil Cleaning Roll, but the frequency of cleaning varies. The more busy the EMS line is, the more frequently they will wipe and the more slow the line is, the less frequently they will wipe. The SMT Stencil Cleaning Roll is well matched to the work, ensuring stable working.

How to Choose the Right Stencil Cleaning Roll for Your SMT Printer

When choosing your roll, it's better to conduct a few checks first. When choosing a Stencil Cleaning Wiper Roll option, refer to this list:

• Roll width and length compatible with your printer.
• If the spindle is off-center, the roll will not be centered on the spindle.
• Compatibility of your cleaning mechanism with your printer.
• Absorbency that is appropriate for the type of paste you use.
• Consistency of material from one roll to another - no variation of results between batches.
• Dry or wet cleaning requirements; some processes require no solvents, others require solvents.

Tell the supplier what type of printer you have and the model. Most fit issues will be avoided by that one step. When comparing Stencil Cleaning Roll Suppliers in India, you should also inquire about the availability of inventory, sample support, and delivery timelines. The wrong roll that is too cheap is more expensive than the right one.

Why Choose Reliable Spares & Consumables for Stencil Cleaning Rolls?

As important as choosing a roll is choosing a supplier. But many consumers look for Stencil Cleaning Roll Manufacturers and Stencil Cleaning Wiper Roll Manufacturers; what they're looking for is a partner who knows the needs for fit and consumables for printers. Reliable Spares & Consumables offers electronics consumables for SMT & ESD-safe environments which includes stencil cleaning rolls.

• The following is a list of what you can expect when buying this product:
• A range of rolls to suit common stencil printer requirements.
• Advice on printer compatibility prior to ordering.
• Assist in selecting the proper width, core size and material for the cleaning cycle.
• Support for quotations on trial and regular orders.
• Provide alternatives, depending on your production requirements.

You work with a team that responds to your technical questions clearly and concisely with Reliable Spares & Consumables. This means it's a breeze to trim down on trustworthy Stencil Cleaning Roll Suppliers without any guesswork.

Frequently Asked Questions

1. What does a stencil cleaning roll do?

Cleans the bottom of the stencil between each shot of solder paste. This ensures that the apertures remain clear, and ensures that the paste is deposited evenly throughout the board.

2. How many times a day should the stencil be wiped?

It is dependent on board design, paste used and print volume. Small parts or parts that are very thin will require more frequent wipes. After a few trial runs, most teams set the interval.

3. Does one roll work with all printers?

No. The width, length and core size vary from printer to printer. Double check with the supplier before ordering, to ensure that the roll fits the cleaning mechanism.

4. What is better, dry cleaning or wet cleaning?

Both are not suitable in all situations. Dry wiping is used to remove loose paste, and wet wiping with solvent will clean the stubborn residue. There are many lines that have both modes to achieve a better result.

5. Does printing need lint?

Yes. Loose fibres may be deposited on the stencil and cause paste deposits or fill fine apertures. A low-lint roll minimises that risk particularly with fine-pitch boards.

6. How do I request a quotation?

Provide the team with the model of your printer along with the ideal roll size and quantity. They will discuss the needs you have and then provide you with pricing and supply information.

Get the Right Stencil Cleaning Roll for Your SMT Production

Sterile stencils result in more consistent prints, and the proper roll makes that process simple. Don't buy without checking width, core size, absorbency and printer fit, and select a supplier that will show you the way. A quality stencil cleaning roll is a time, material and rework saver.
