High-yield PCB production or even critical repair would not be possible without a steady hand, but it would be necessary to have proper equipment and thermal dynamics knowledge. The line of Ball Grid Array (BGA) repairs is a narrow line indeed. You may be on either a professional-grade Hot BGA Heating Rework Station or a more portable system, but a single misstep can result in a very costly PCB becoming scrap metal.
We list the five most common BGA rework errors that are murdering your PCBs and how to prevent them by selecting the appropriate tools, including the 8858 Portable BGA Rework Solder Station or the versatile 8032 BGA Rework Station.

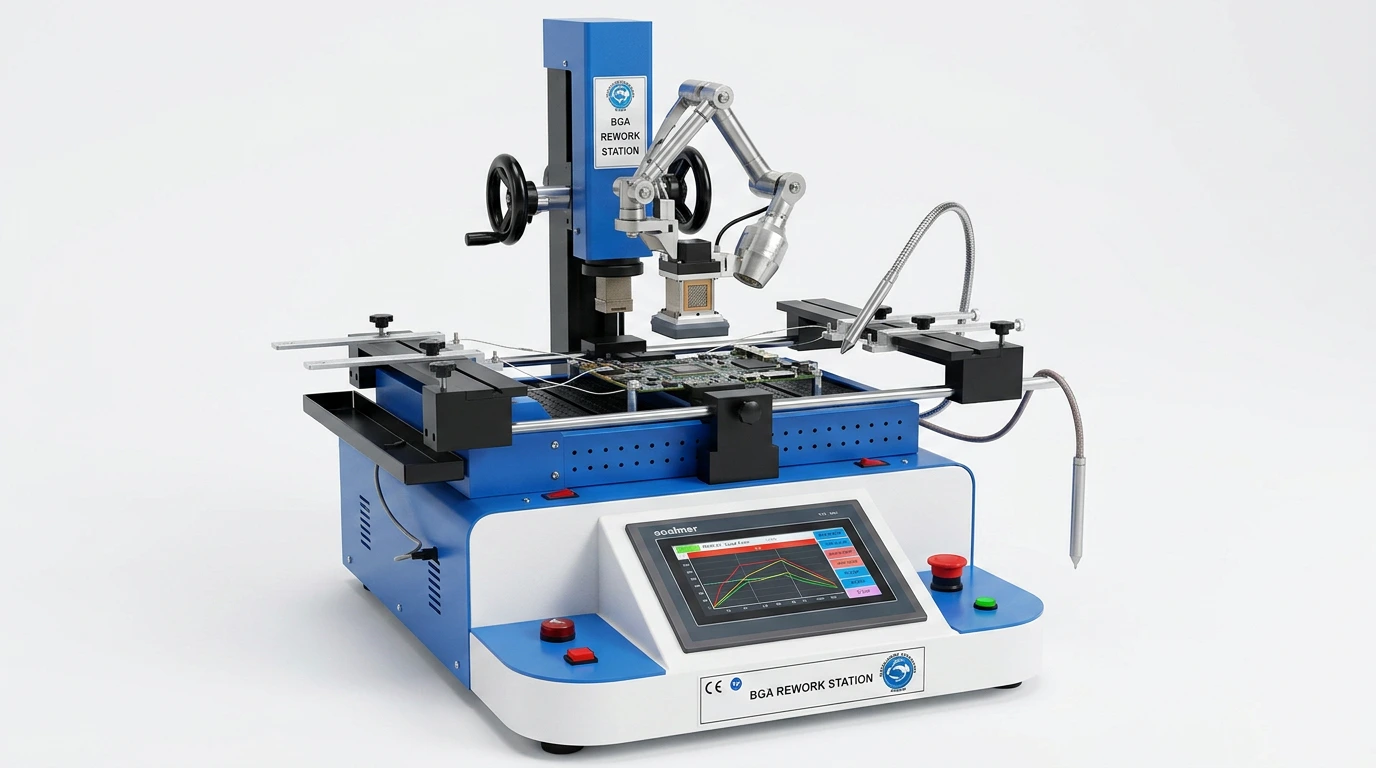

BGA Rework Station
The BGA rework station is an important part that is used for smooth working on complex PCB (Printed Circuit Board) rework and repair jobs with precision and control.
Choose trustworthy BGA Rework Station Manufacturers in India who ensure long-term performance and durable quality.
Fun Fact 1: “BGA (Ball Grid Array) packages can have hundreds to thousands of tiny solder balls underneath them.”
4 Common BGA Rework Station Mistakes that Affect PCBs
Here are 5 common BGA rework station mistakes that affect PCBs:
1. Improper Thermal Profiling: The Silent Killer
The commonest error made during BGA rework is that of not adhering to a particular thermal profile. Most technicians will try to eyeball the heat or even apply a normal heat gun without computerised precision. When the temperature increases rapidly, the part may experience thermal shock. On the contrary, should the soak time be undersized, the internal solder balls will not hit liquidus at the same time.
Using a Hot BGA Heating Rework Station which can be controlled by a programmable PID. Proper profiling involves:
- Preheating: Slowingly heating the whole board to avoid warping.
- Soak Phase: The flux should be allowed to start and the temperature to stabilize.
- Reflow: This is a period where the maximum temperature is reached to be able to melt the solder.
2. Neglecting Moisture Control (Popcorning)
PCBs and BGA components are hygroscopic- they take in moisture in the air. When you rework with high heat and do not pre-bake, that trapped water will become steam immediately. This internal force may lead to cracking or delaminating of the component from the board, a phenomenon termed the popcorn effect.
It is always best to pre-bake your boards and components in a controlled oven before beginning to perform the rework process, particularly when in a humid environment.
Did you know? “BGA technology was introduced in the early 1990s to improve electrical performance and reduce space.”
3. Poor Flux Application and Management
The flux is the secret sauce in BGA rework and is frequently abused. Excessive flux may result in solder balling or bridging between adjacent pads, resulting in a short. Excessively small flux and the probability of oxidation or cold solder joints which fail within a few weeks of use are real dangers.
For precision work on a budget, tools like the 8858 Portable BGA Rework Solder Station can be used to provide the fine airflow required to apply heat without vaporising the flux off the target.
4. Inadequate Preheating of the PCB
Most technicians are only concerned with the top-down heat. But when the bottom of the PCB is cold, it serves as a huge heat sink, drains the thermal energy out of the BGA. This causes uneven melting and causes huge mechanical stress to the board, causing permanent warpage.
Leading BGA Rework Station Manufacturers in India emphasize the importance of high-wattage bottom heaters. Even if you are using a Best Budget BGA Rework Station at a distance, ensuring the board is preheated depending on the alloy is non-negotiable for success.
